Offering an aesthetic and professional looking solution for exposed pipework at Apartments on Batley
>B< Press is a versatile press fitting system that provides a secure, permanent and leak-proof joint suitable for a variety of applications.
Applications
- Water Fittings
Suitable for:- Drinking water
- Heating water (non solar)
- Chilled water
- Fire services
- Rainwater
- Steam
- Gas Fittings
Suitable for:- Natural gas
- LPG
- Compressed air (with or without oil content)
- Fuel lines
- High Temperature Fittings
Suitable for:- Solar hot water
Suitable for:
- Drinking water
- Heating water (non solar)
- Chilled water
- Fire services
- Rainwater
- Steam
Suitable for:
- Natural gas
- LPG
- Compressed air (with or without oil content)
- Fuel lines
Suitable for:
- Solar hot water
>B< Press is suitable for use across a wide range of applications depending on medium, temperature and pressure. To find out more, download our application guide.
Features
O-Ring

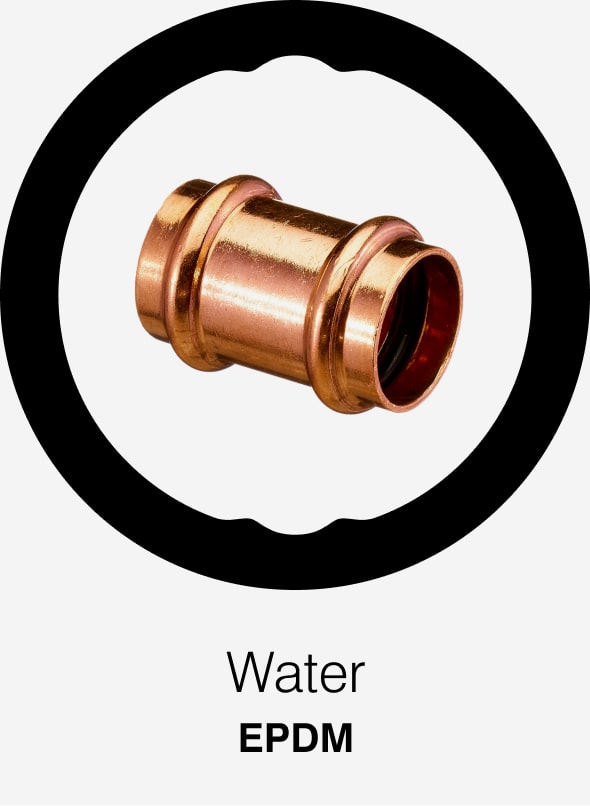

>B< Press Water fittings are identified by a black O-ring.

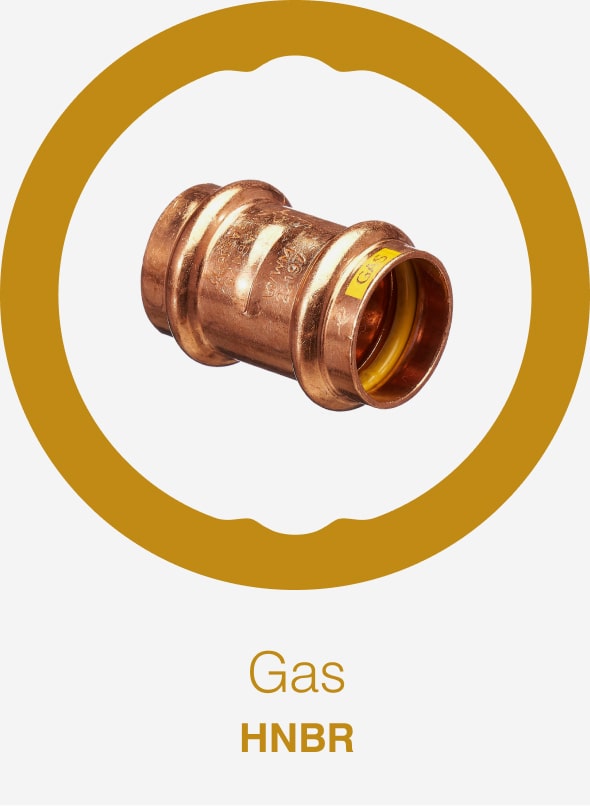

>B< Press Gas fittings are identified by a yellow O-ring and yellow GAS marking on the body.

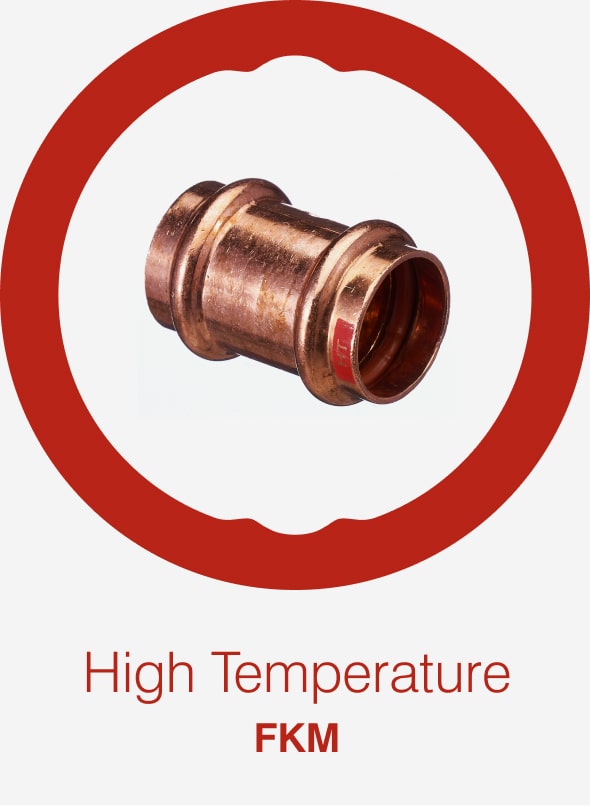

>B< Press High Temperature fittings are identified by a red O-ring and red HT marking on the body.
*Important Note
The O-ring colour and identification must meet the application. O-rings in the fittings are not to be removed or changed.

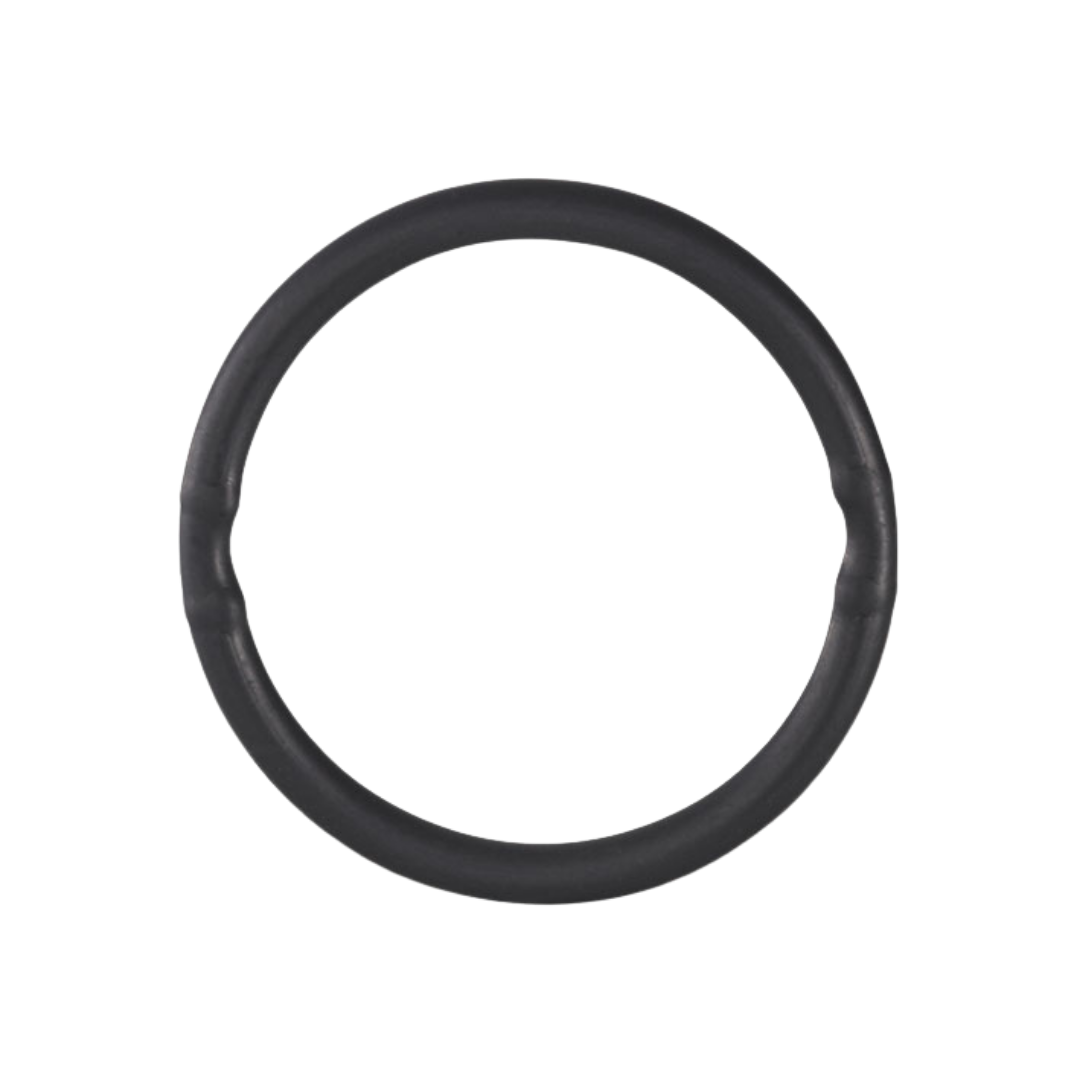

Leak Indicator
The unique leak indicator is a specially designed, patented O-ring. It has a reduced section in two positions that allows water or air past the sealing element of any unpressed connection, providing a visible leakage point when commissioning the system.
This offers peace of mind to the installer that any unpressed fittings can be easily identified and completed before handing over the project, and gives confidence to the client that there will be no leaks during operation.
Unpressed fittings are identified by pressurising the system with a pressure range of 100kPa to 500kPa for water (prior to the final pressure testing) and 2.2kPa to 300kPa for gas. When the fitting is pressed, the O-ring material compresses, filling the gaps and creating a leak-free joint.

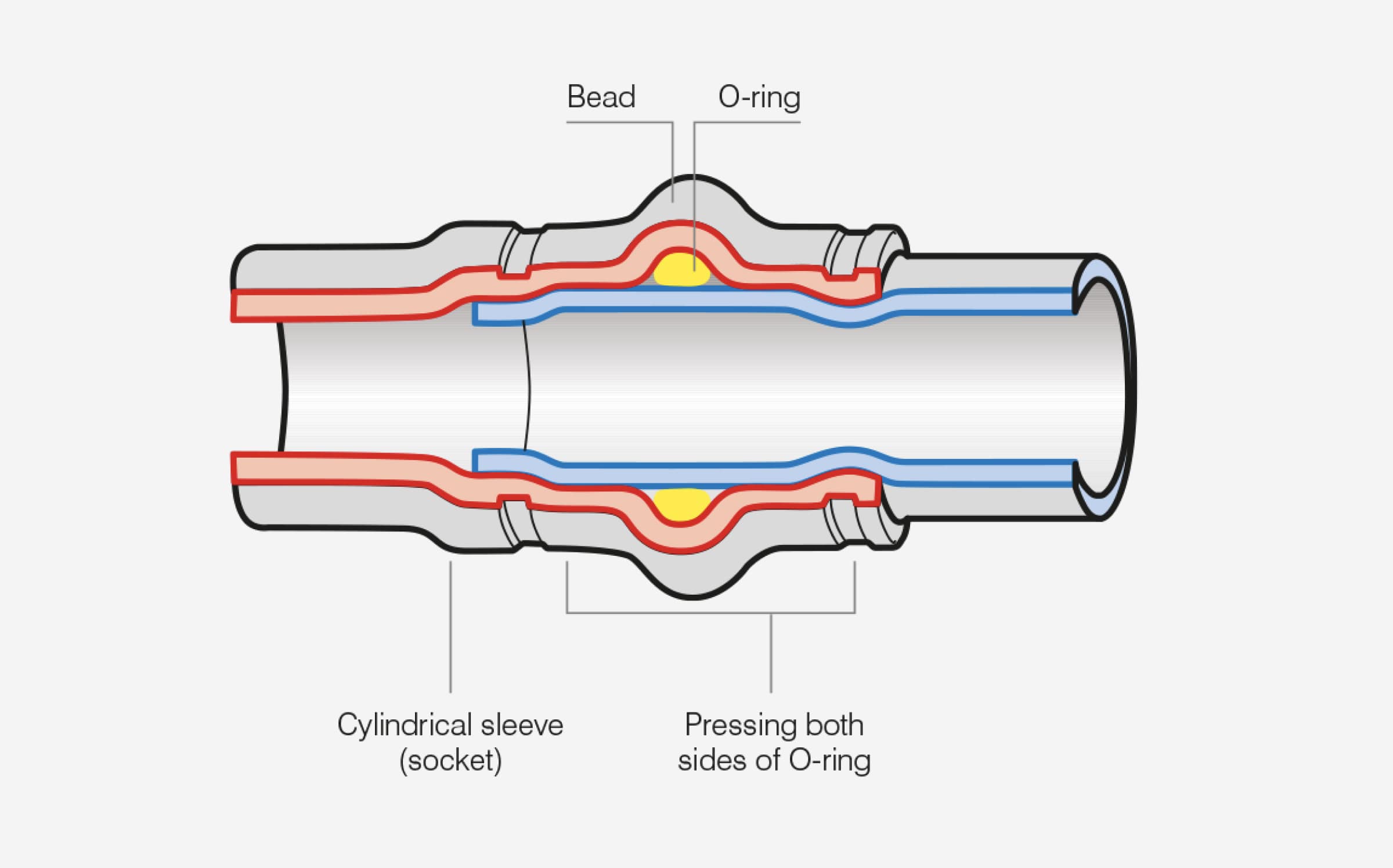

3-Point Press
The >B< profile has the advantage of two mechanical presses either side of the bead and one hydraulic press crimping the O-ring. This provides a permanent and secure joint. The lead-in edge design aids installation and helps protect the O-ring from damage or displacement.
Why choose
Flame Free
Takes away the risk of fire on site and eliminates the need for a hot works permit and heavy equipment.
Superior Performance
Corrosion resistant, with a design life of 50 years that can be relied on long after installation.
Lower Installed Cost
A professional fitting which is quick and simple to install, saving time and money.
Permanent Connection
A secure, permanent joint ensures the fitting cannot be tampered with.
Higher Productivity
Installation can be completed during working hours or public access by a single employee.
Fully Certified
Extensive third-party certification offers peace of mind to the client, specifier and installer.
25 year
Warranty
A 25 year warranty covers against faults caused by defective manufacture of the fittings. It does not cover faults arising from incorrect installation.
All >B< Press fittings must be installed by a licensed plumber.

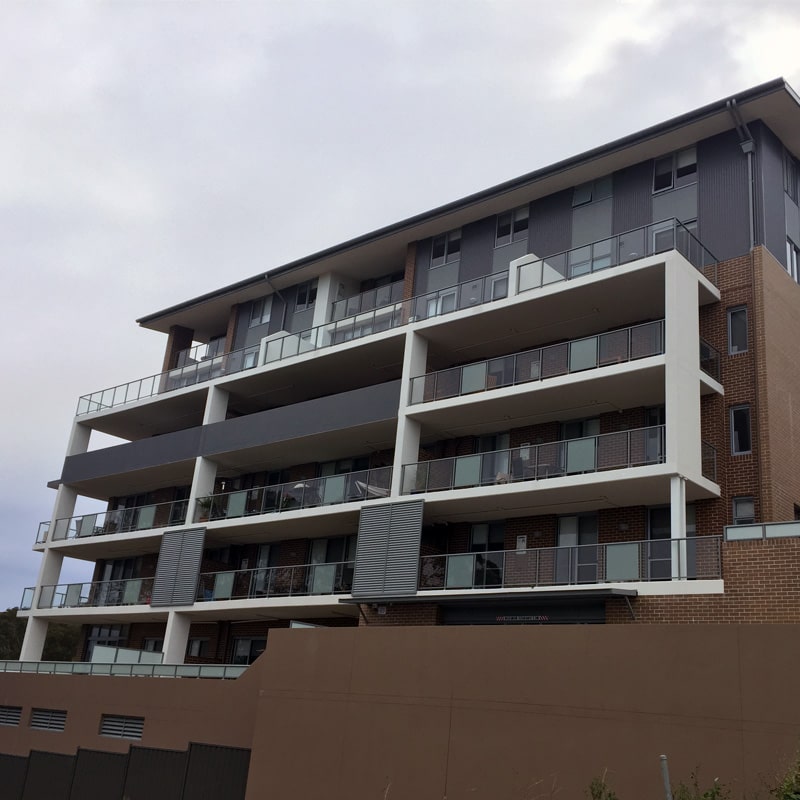

Featured Case Study
- Project
- Apartments on Batley
- Application
- Hot and cold water and gas
- Location
- West Gosford, NSW, Australia
- Installer
- Superjet Plumbing Services Pty Ltd
